Hydraulic Lift Table

Rumah >> Produk >> Lini produksi kayu lapis >> Hydraulic Lift Table

  • 3T Hydraulic Lift Table with Motorized Roller (Without Foundation)

  • 3T Hydraulic Lift Table with Motorized Roller (Without Foundation)

  • 3T Hydraulic Lift Table with Motorized Roller (Without Foundation)

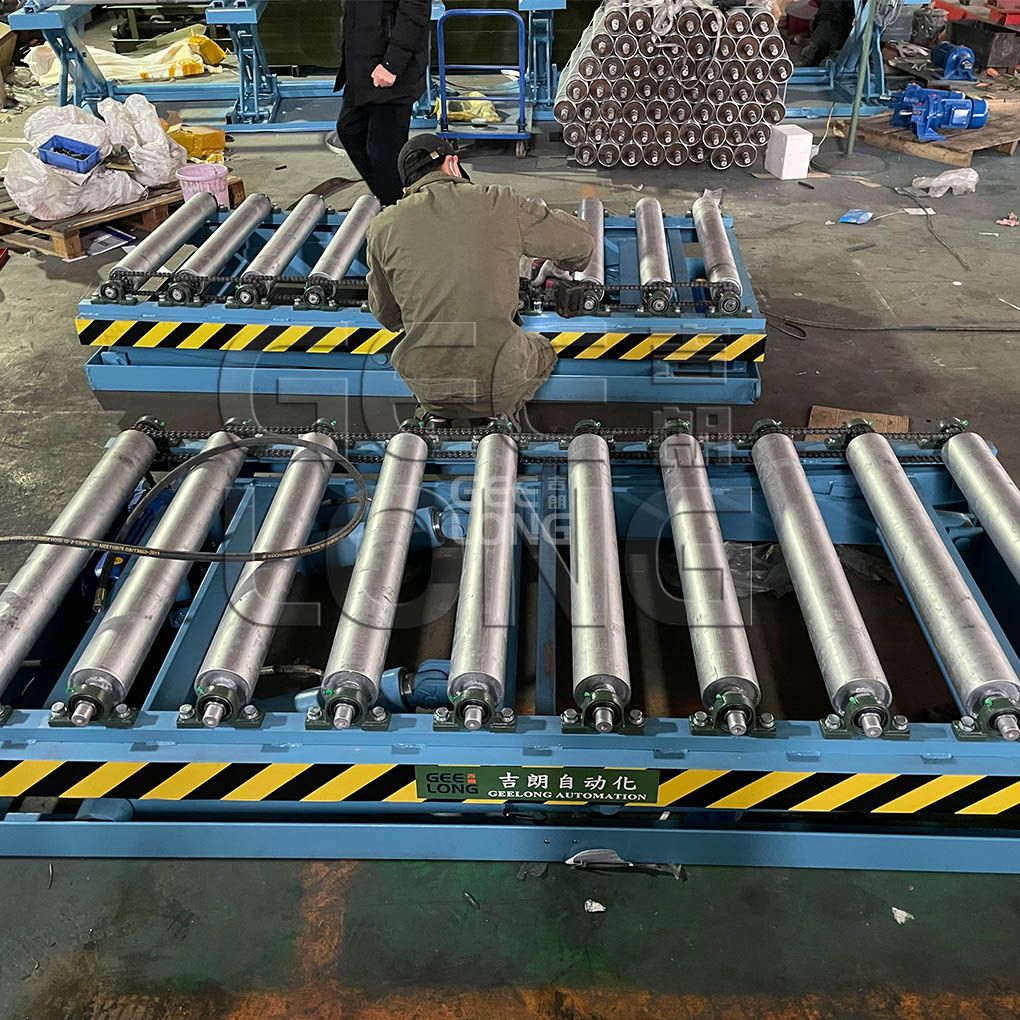

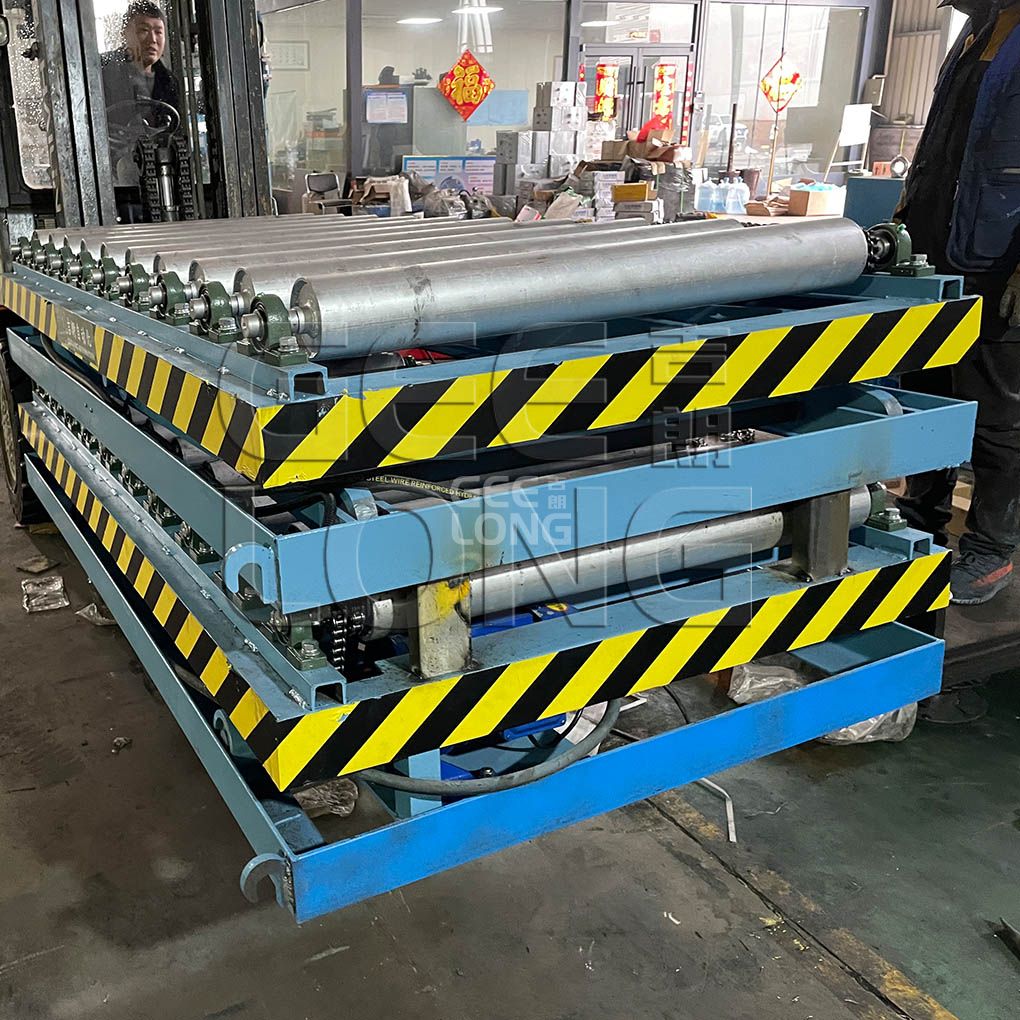

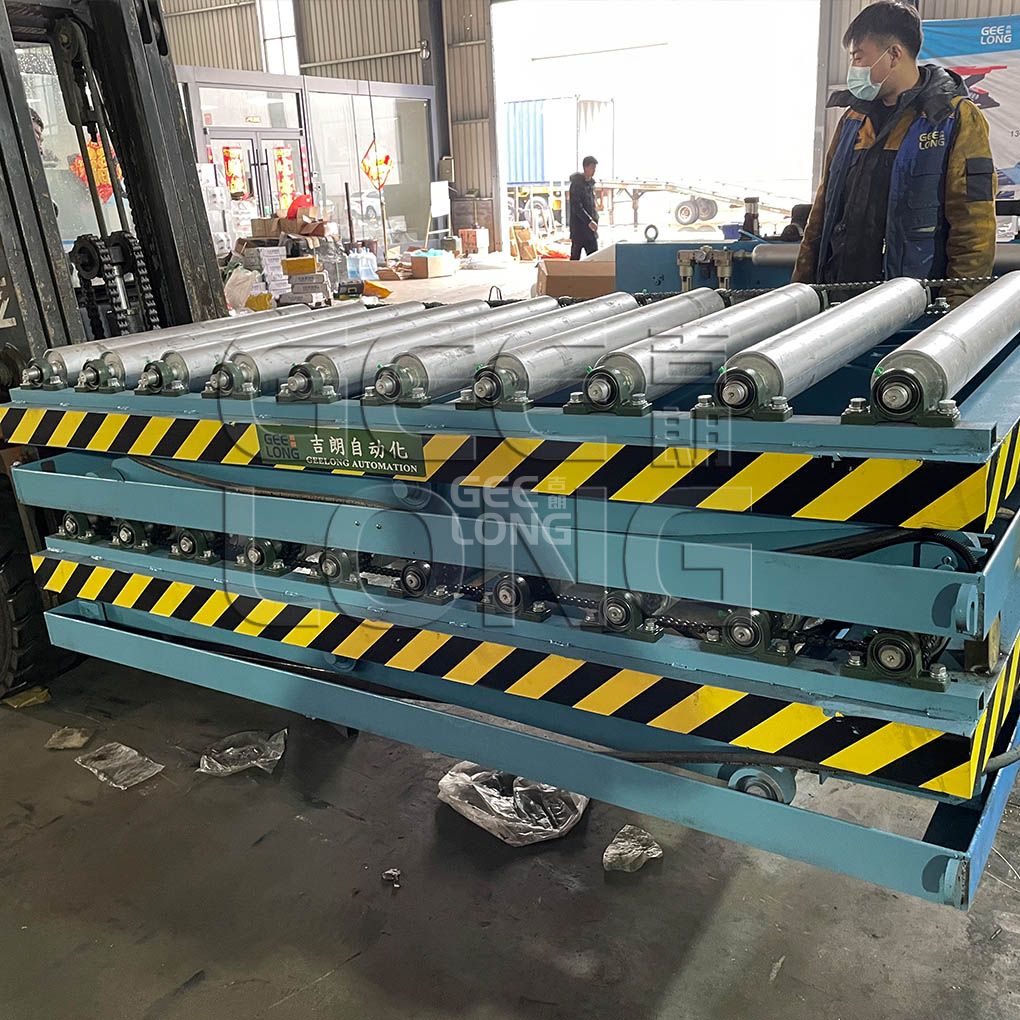

3T Hydraulic Lift Table with Motorized Roller (Without Foundation)



Total power:

Device name:3T hydraulic lift table with powered roller (without foundation)
Device model:machine model type:GBL4x8ft
working desk size:working table side:1200*2400mm customized
Maximum carrying weight:Max. Loading weight:3T customized
Closed height:height when closing:400mm
Cylinder diameter and number: cylinder Dia. And Qty:Φ130mm*2sets
total power: 3kw
Equipment size:machine dimension:2400X1200X400mm
equipment weight:machine weight:1000kg

3T hydraulic lift table with powered roller (without foundation)


3T hydraulic lift table with powered roller (without foundation)

3T hydraulic lift table with powered roller (without foundation)

3T hydraulic lift table with powered roller (without foundation)
