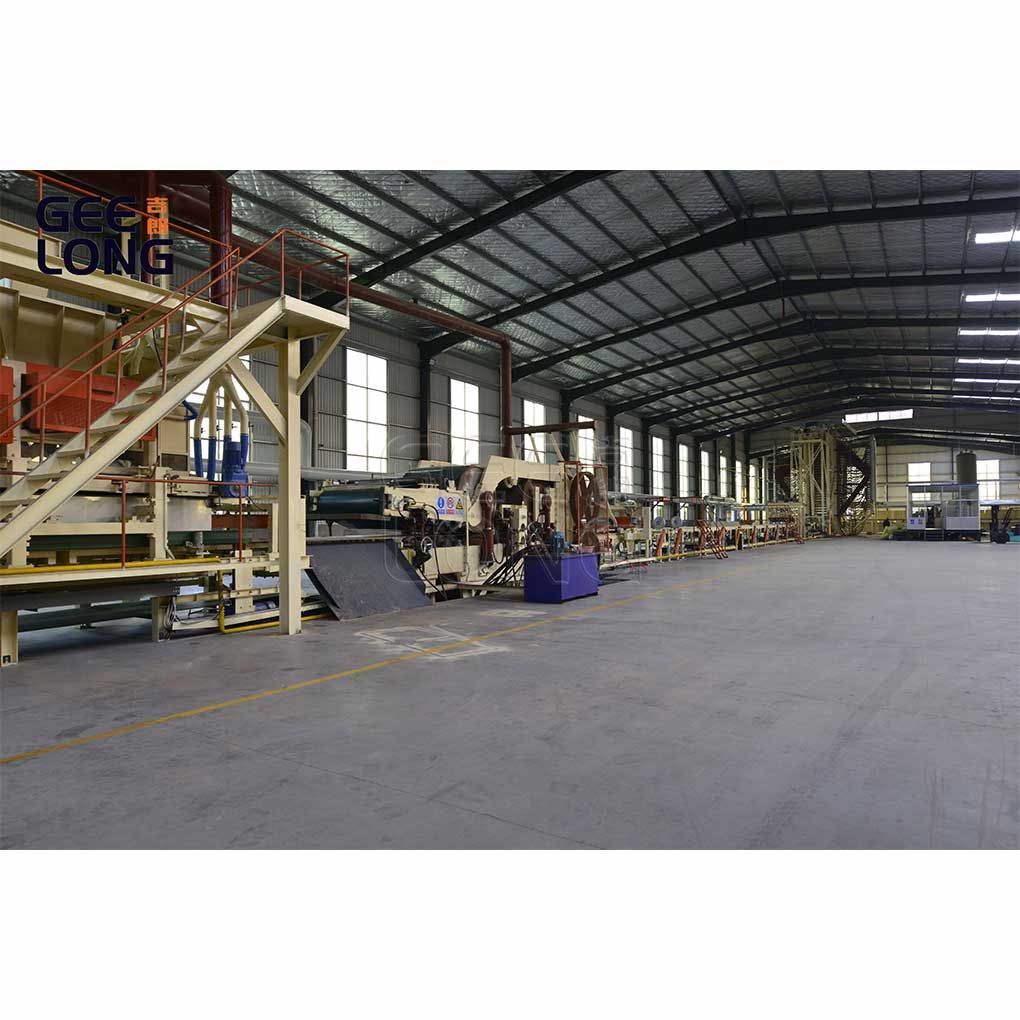

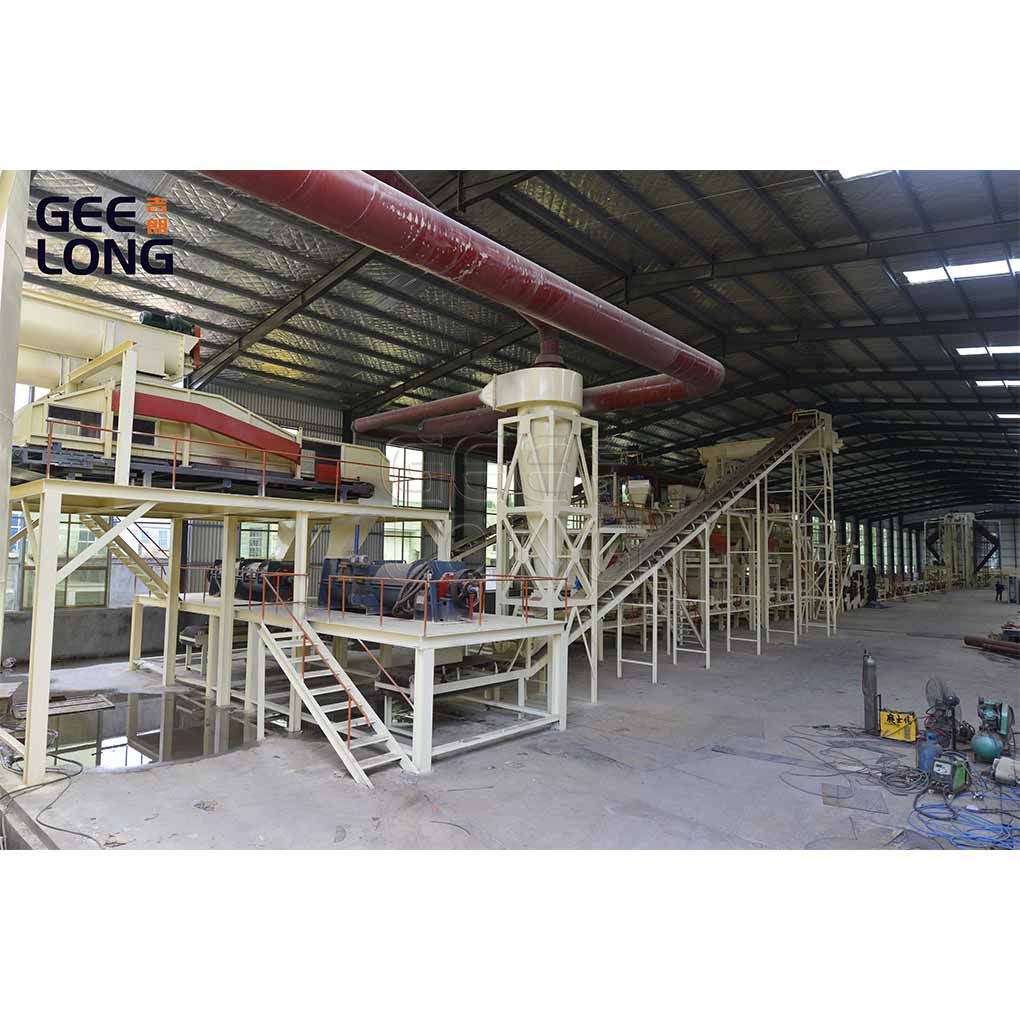

Lini produksi OSB otomatis penuh berbasis kayu sebagai bahan baku, melalui proses pemotongan, pengeringan, perekatan, peralatan bantu, dan pengepresan panas untuk menghasilkan lembaran buatan dengan kepadatan 550-750 kg/m³. Lembaran ini memiliki struktur lapisan inti gradien yang kuat, serta insulasi panas, insulasi suara, dan sifat pemesinan yang baik. Oleh karena itu, lembaran ini banyak digunakan dalam pembuatan furnitur, lemari kelas atas, speaker, dan konstruksi interior serta pengemasan transportasi lainnya. Kami merancang dan memproduksi lini produksi OSB dengan kapasitas tahunan 30.000-60.000 m³/tahun. Pada bagian pengeringan, pencampuran lem, dan pengepresan panas, kami telah melakukan modifikasi teknis yang signifikan, sehingga mengurangi investasi pembeli dan meningkatkan kualitas produk akhir.
Production process
1.Flakes preparation section.
Raw material is processed into qualified flakes by the long wood log flaker machine, then the flakes are transported to theosb flakes wet silo, and then the wet osb chips will be stored in the big osb silo for going next section.
2.Drying and sifting section
The flakes discharged from the wet flake silo are conveyed to the rotary dryer or three-way dryer machine. Then driedflakes will go through vibrating roller screen machine. Next qualified surface flakes are stored in surface flake silo; Qualifiedcore flakes are stored in core flake silo.

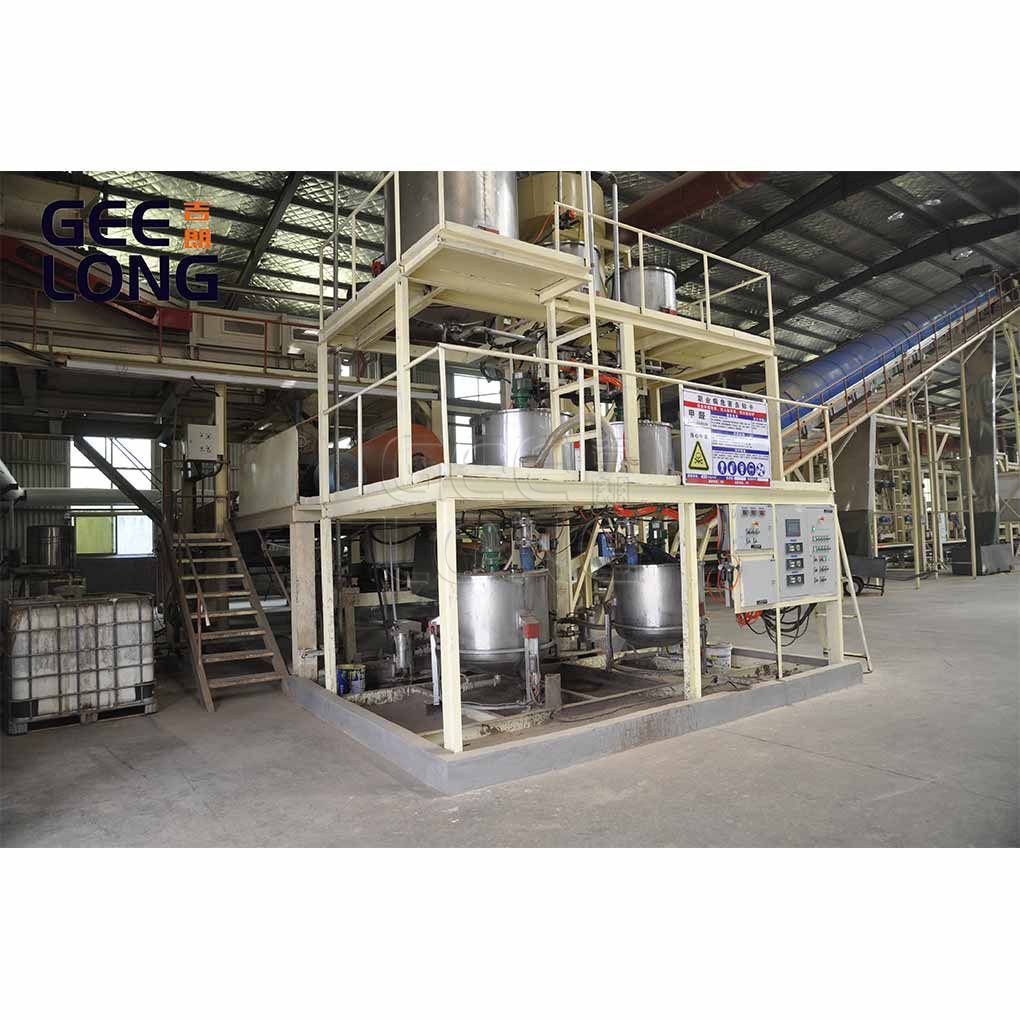

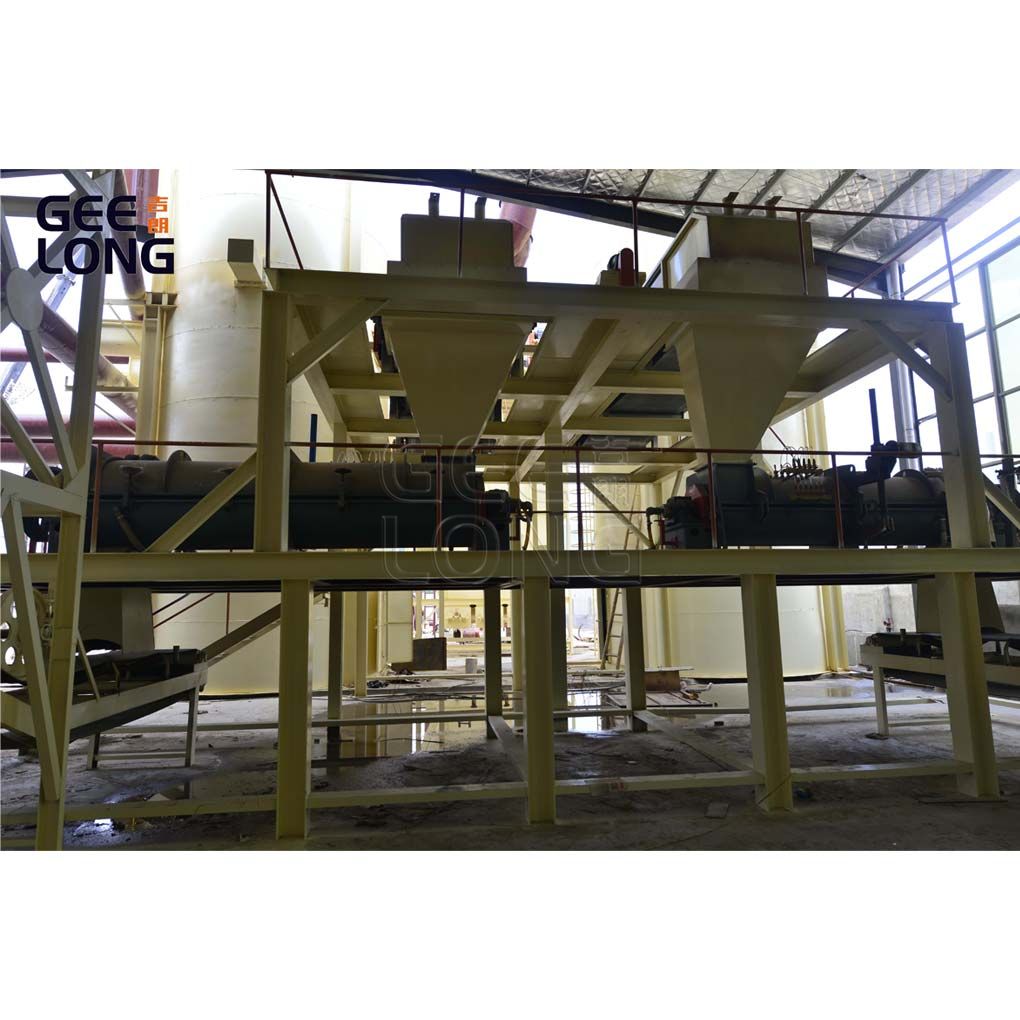

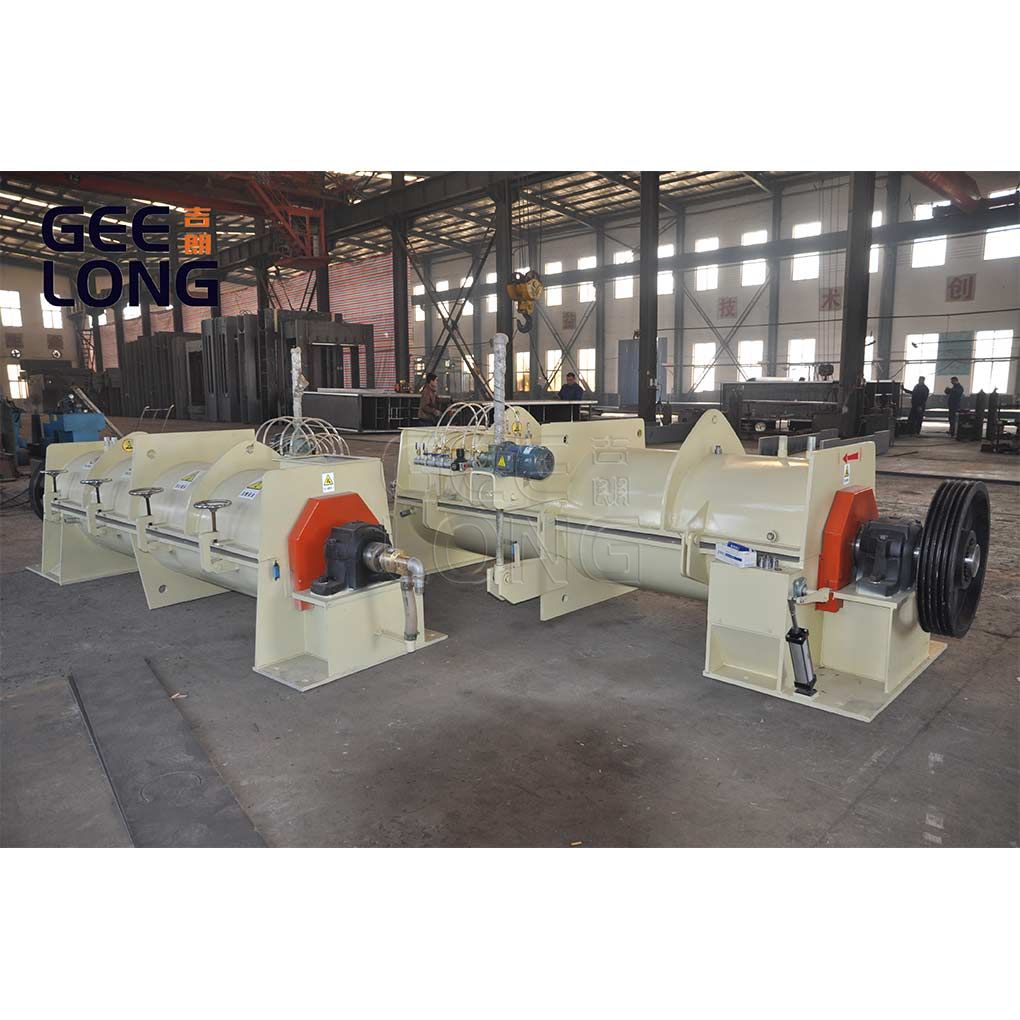

3.Glue regulating and blending section
Afier scaled, the core and surface flakes are to be effectively and uniformly mixed with qualified glue independently viaface layer glue blender machine and core layer glue blender machine

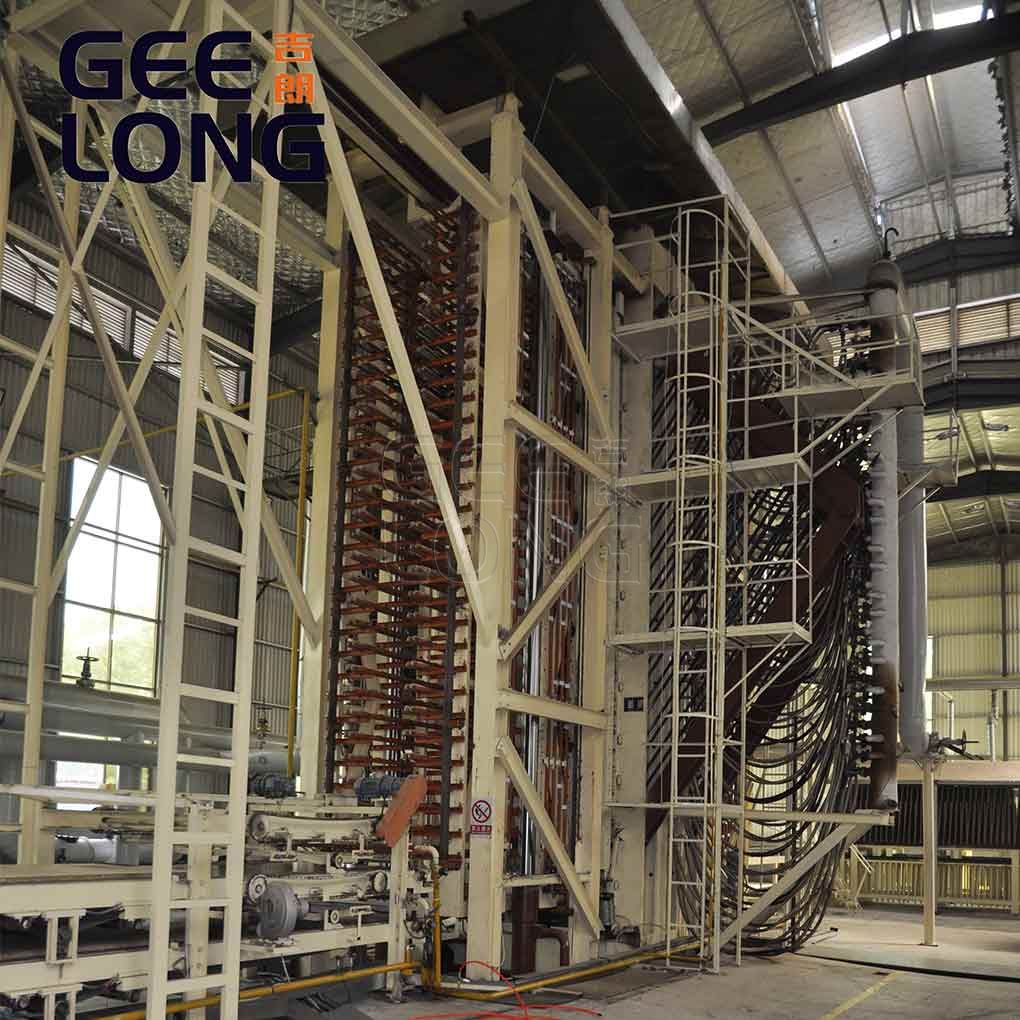

4.Forming and hot-pressing section
The surface and core flakes are sent into OSB forming machine, and forming on the mat conveyor uniformly. After processof metal remover, pre-press, lengthwise saw, cross saw, accelerate conveyor, scaling conveyor, storing conveyor and loadingconveyor, mats are transported to multi-layer belt conveying loader and then to hot pressing. Rough boards after pressing arepushed to unloader via pallet

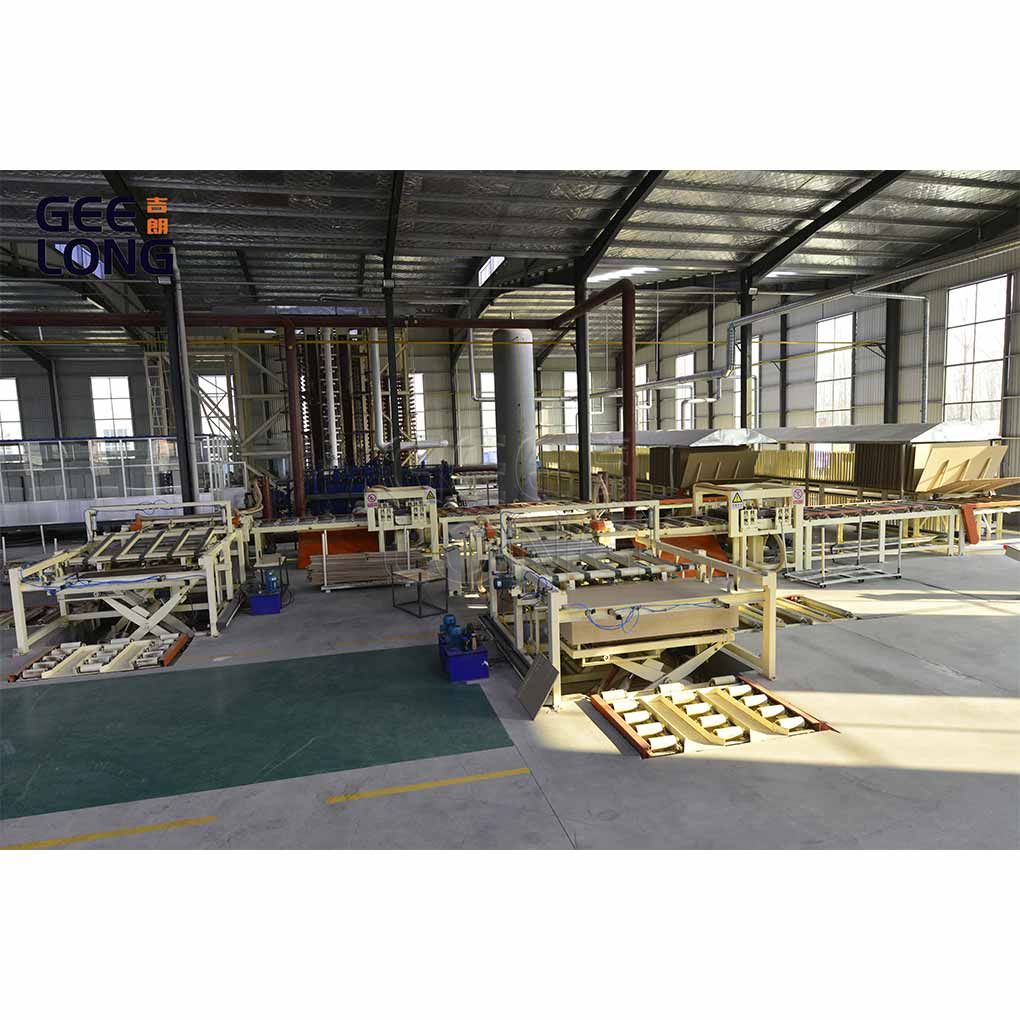

5.Cooling and sizing section
The rough board is conveyed to star-cooler for cooling, then the rough board goes through side trimming saw and become aqualified particle-board, stacked on the hydraulic lift.
